Worsdell class T1
The North Eastern Railway class X (LNER class T1) was a class of 4-8-0T steam tank locomotives designed by Wilson Worsdell for heavy shunting duties and introduced in 1909.
The LNER class T1, originally the NER Class X, was a 4-8-0T steam tank locomotive designed by Wilson Worsdell for heavy shunting of coal and minerals, with 15 built.
The NER class X, which became the LNER class T1 after the 1923 Grouping, was designed to handle the increasing mineral traffic in North East England at the start of the 20th century. These locomotives were intended as powerful shunting locomotives for arranging coal wagons at docks and marshalling yards, such as Hull, Newport, Tyne Dock, and Gascoigne Wood, ensuring efficient coal export operations.
Wilson Worsdell designed the class T1 with a 4-8-0T wheel arrangement, which featured an unusual leading four-wheel bogie and eight coupled driving wheels. This allowed for both stability and traction on heavily loaded shunting lines. Compared to contemporaries such as the LNER class S1 (0-8-4T), the class T1 had similar proportions but used a smaller, pre-existing boiler from the class A6 4-6-2T. Most fitted with steam-operated gear (1932–1934), later removed (1941–1947).

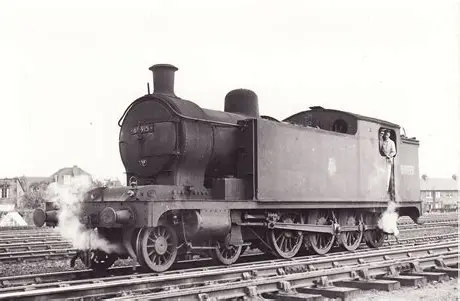

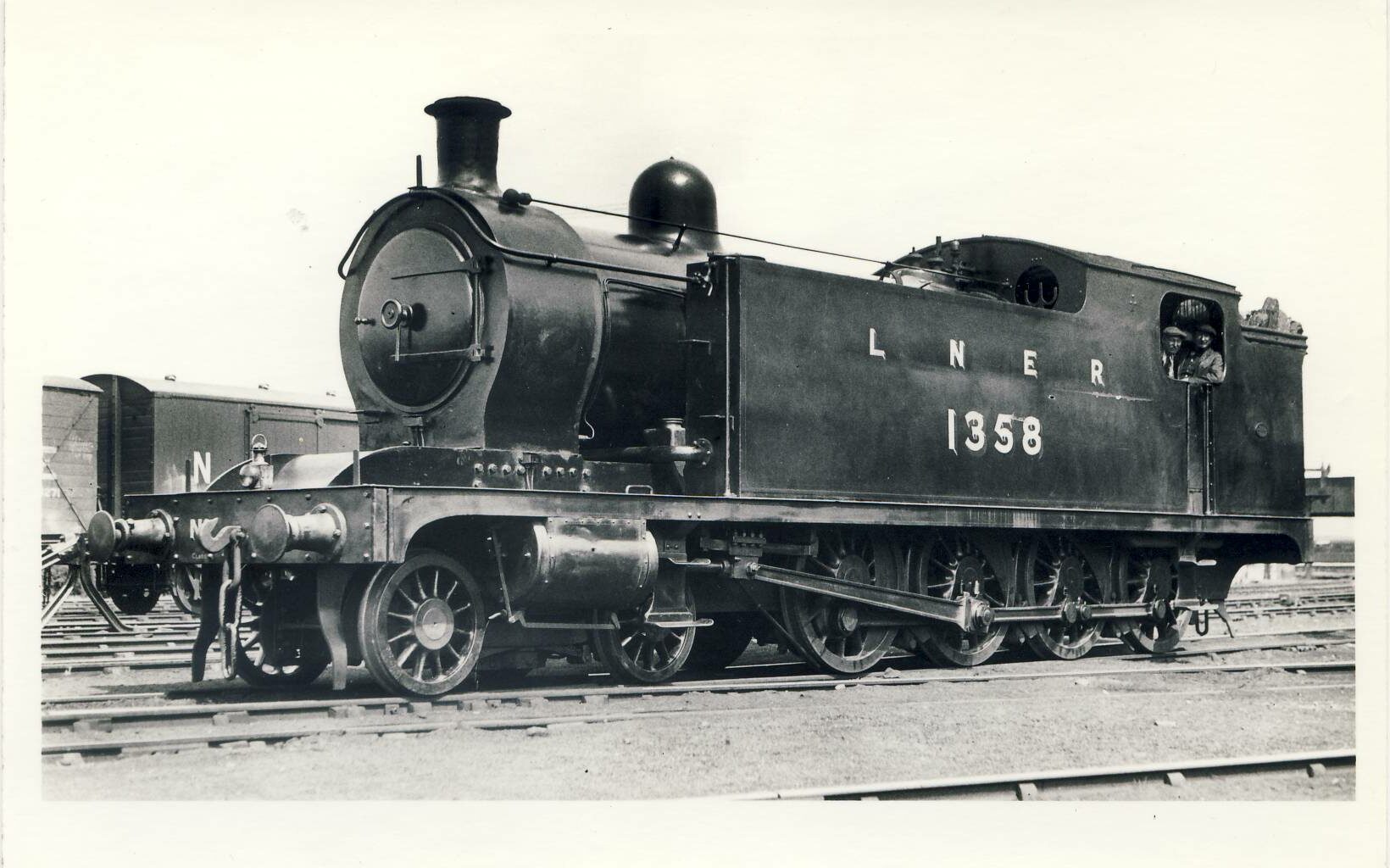

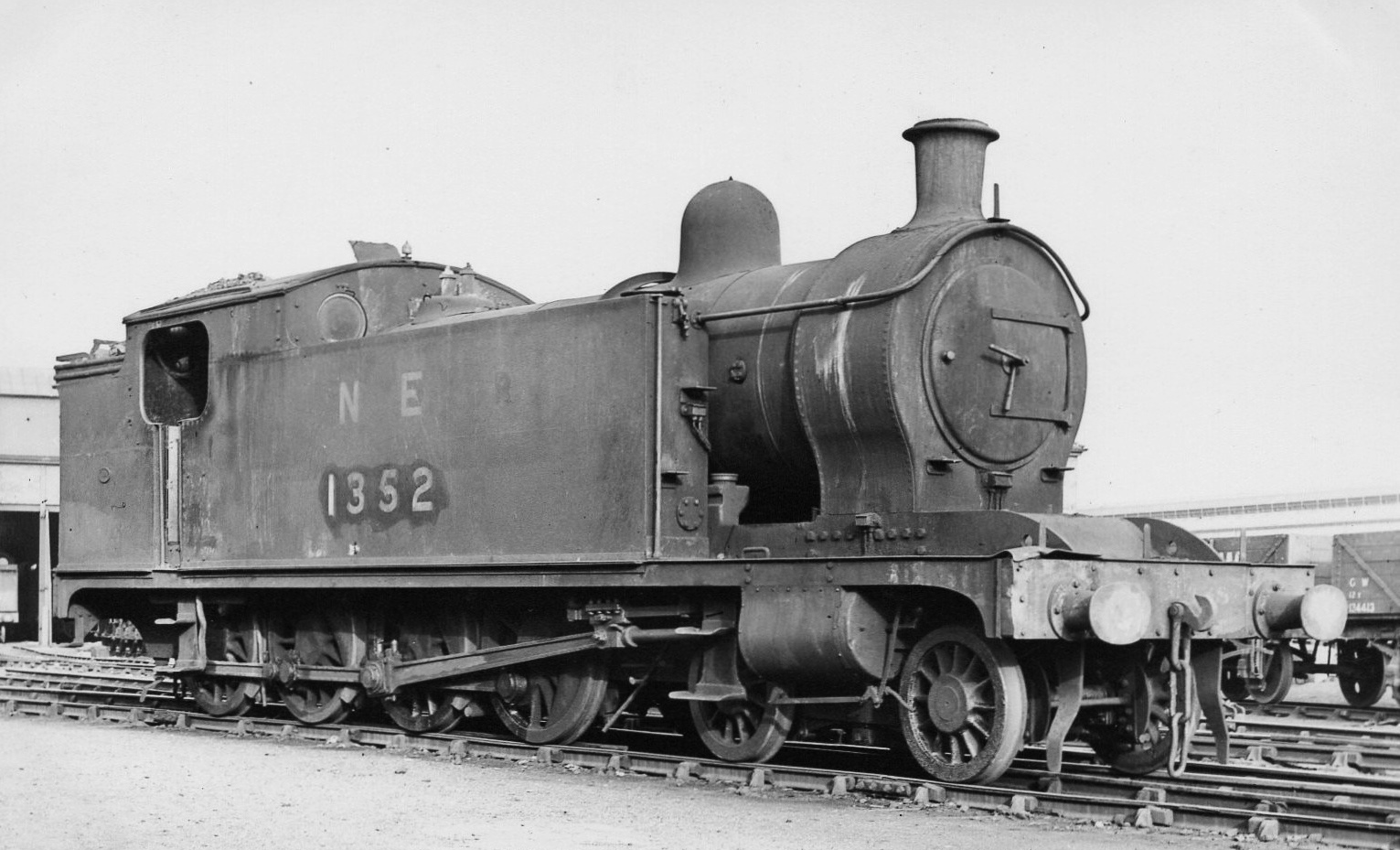

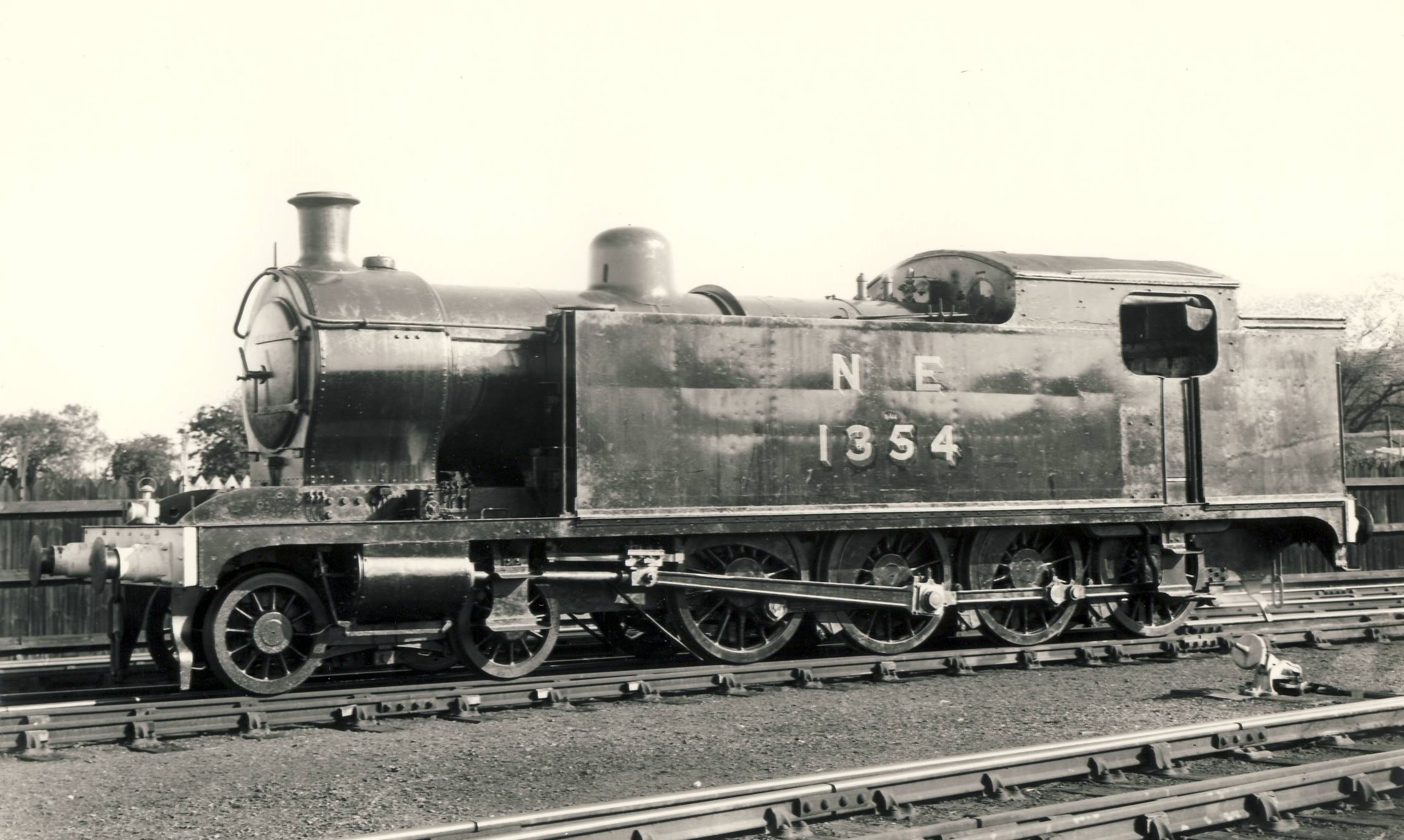

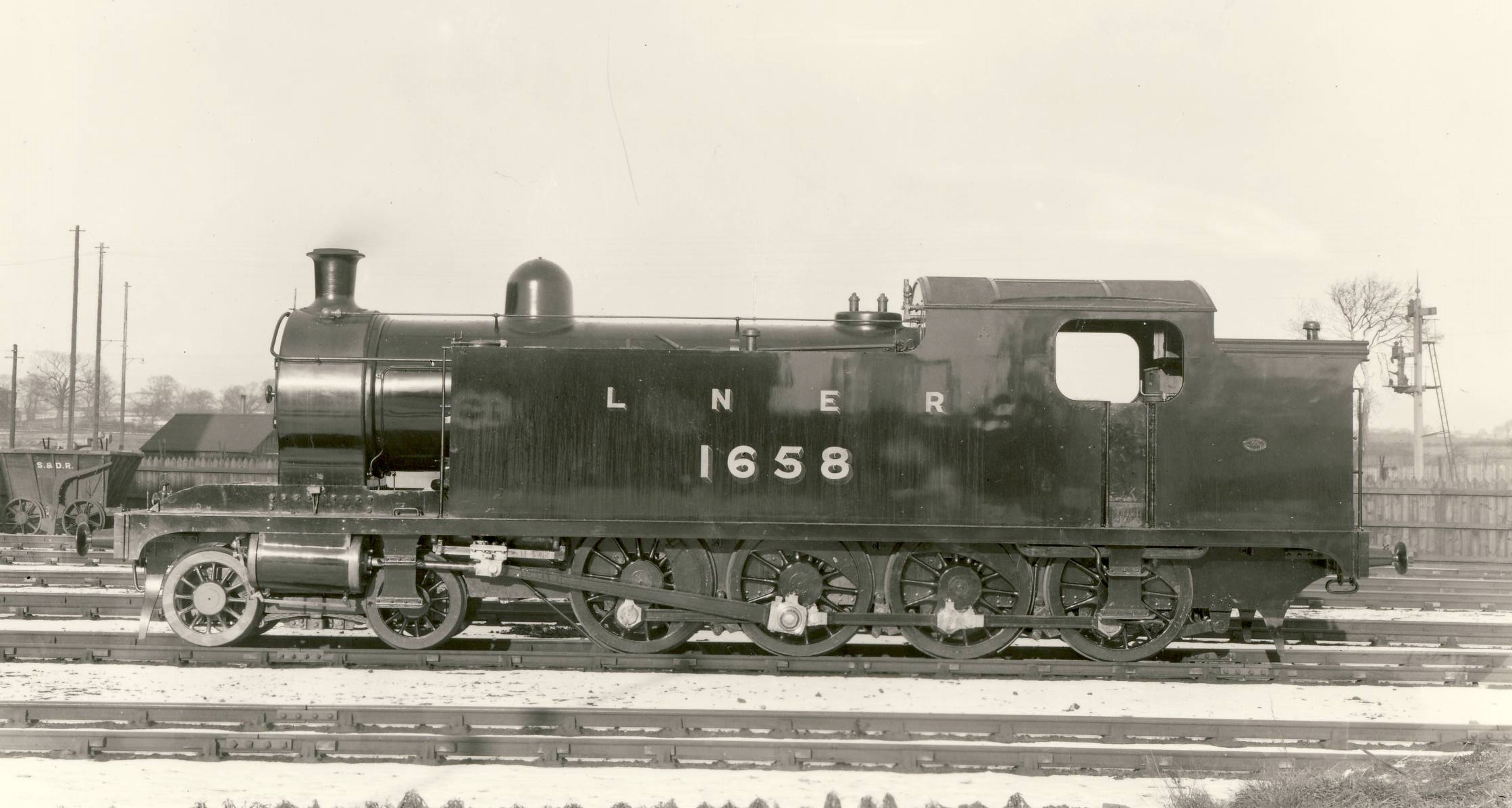

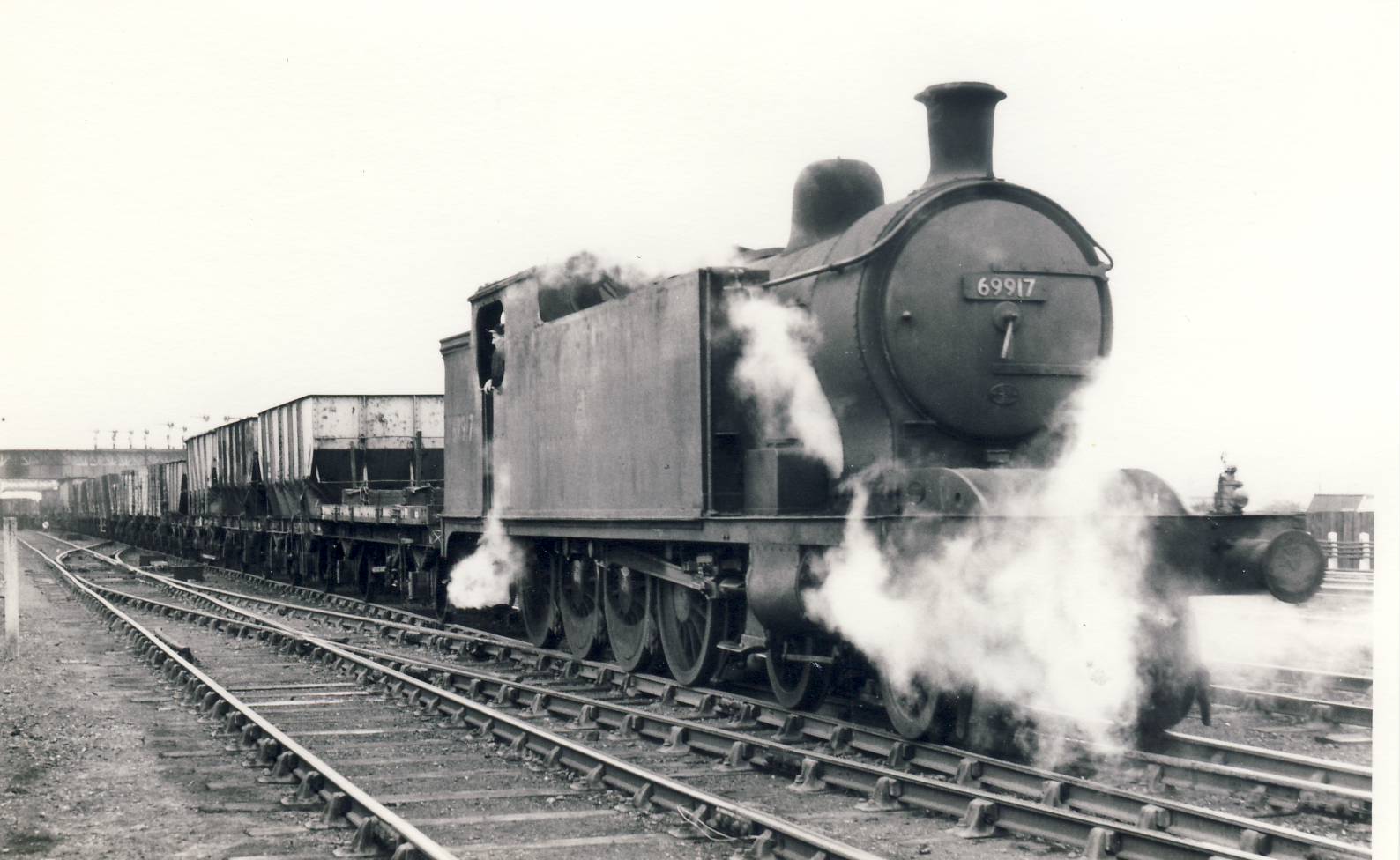

A total of 15 locomotives were built, ten by NER (1909–1910) numbered Nos. 1350–1359 and five by LNER (1925) under Gresley numbered Nos. 1656–1660. The remaining 13 locomotives were later renumbered to Nos. 9910–9922 and by British Railways to Nos. 69910–69922.
Initially widespread across North East yards, including Hull Dairycoates, Newport, Selby, Tyne Dock, Gateshead, and Stockton. Some locomotives were moved for operations outside the North East, including at Whitemoor Yard, Doncaster, Mexborough, and King’s Cross during later years due to decline in post-war coal exports.
The first two locomotives were withdrawn in 1937 with the rest following in 1955-61. None were preserved.
